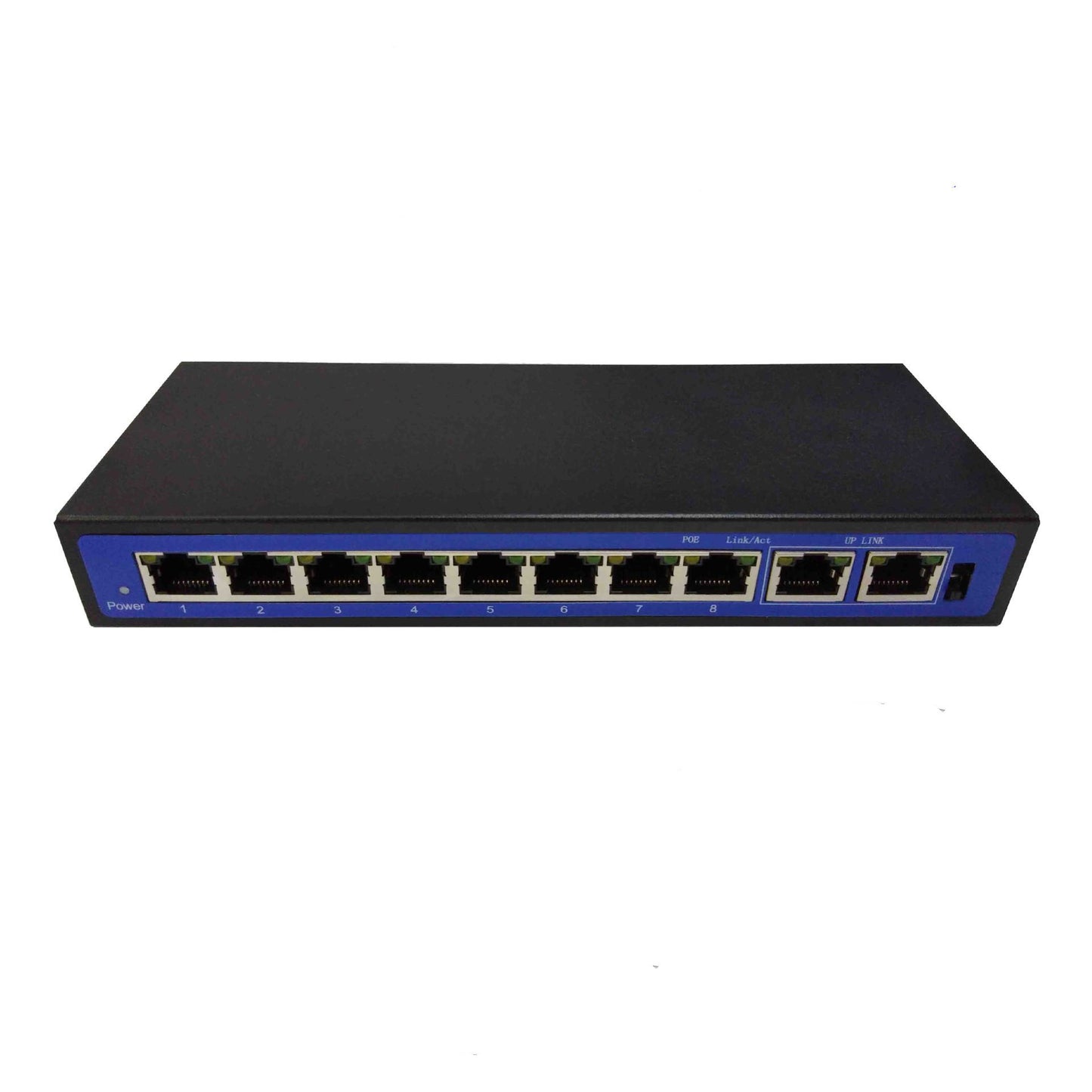

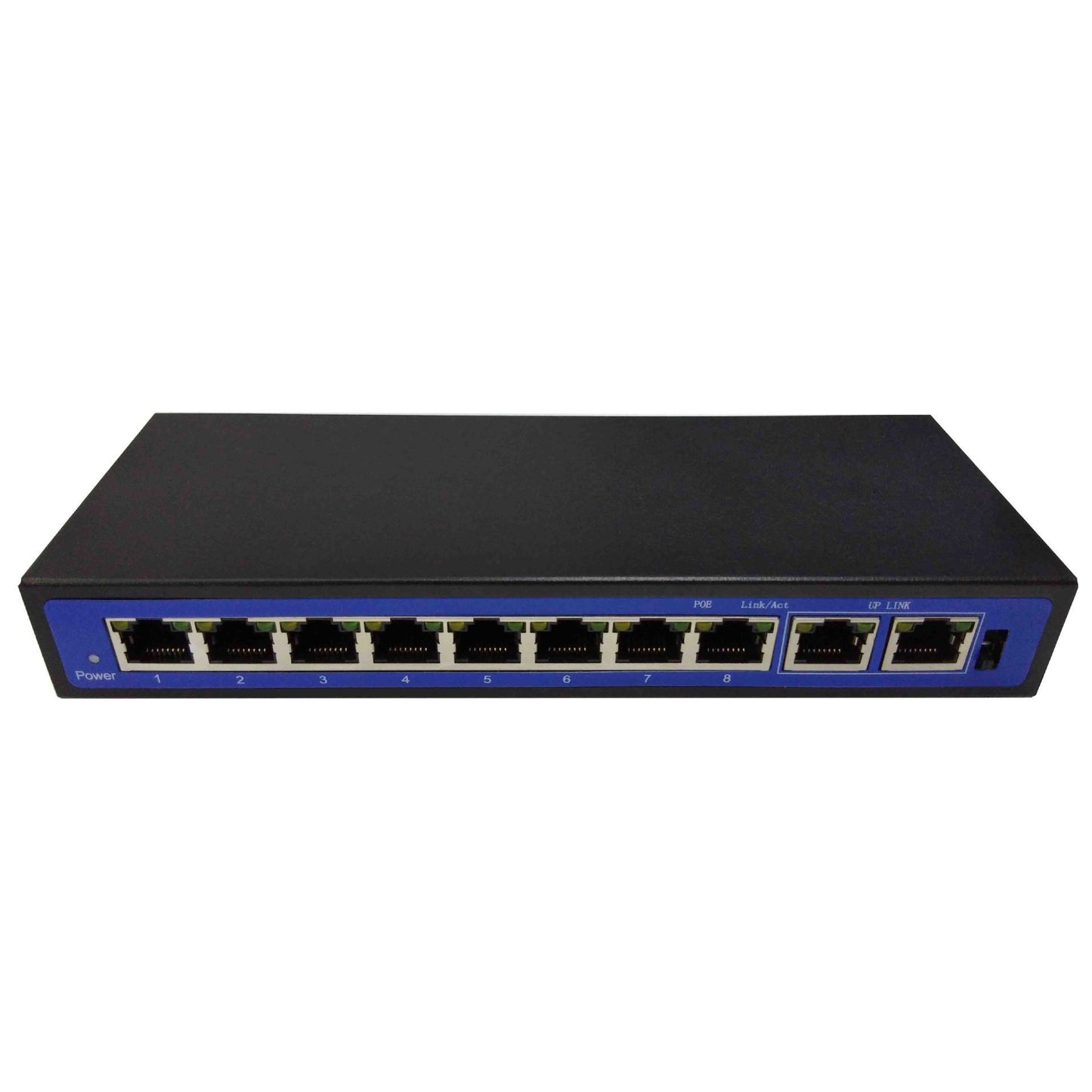

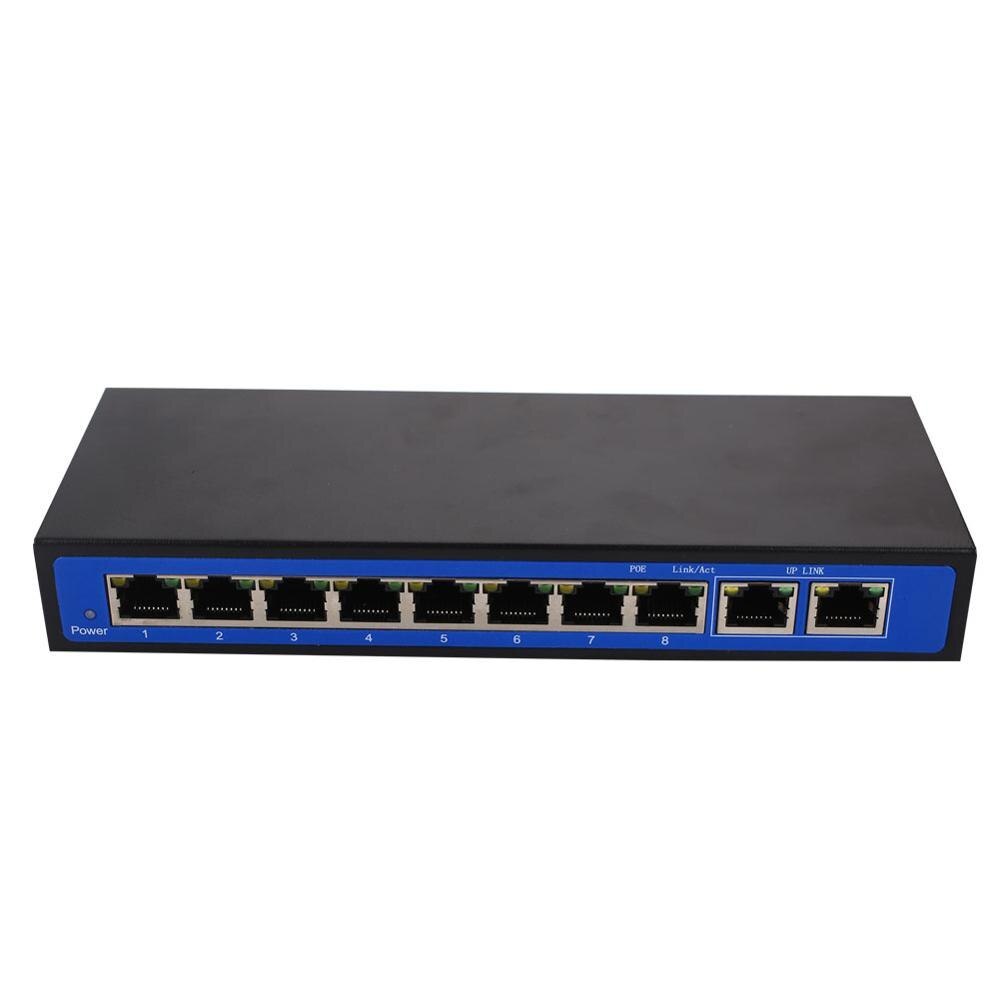

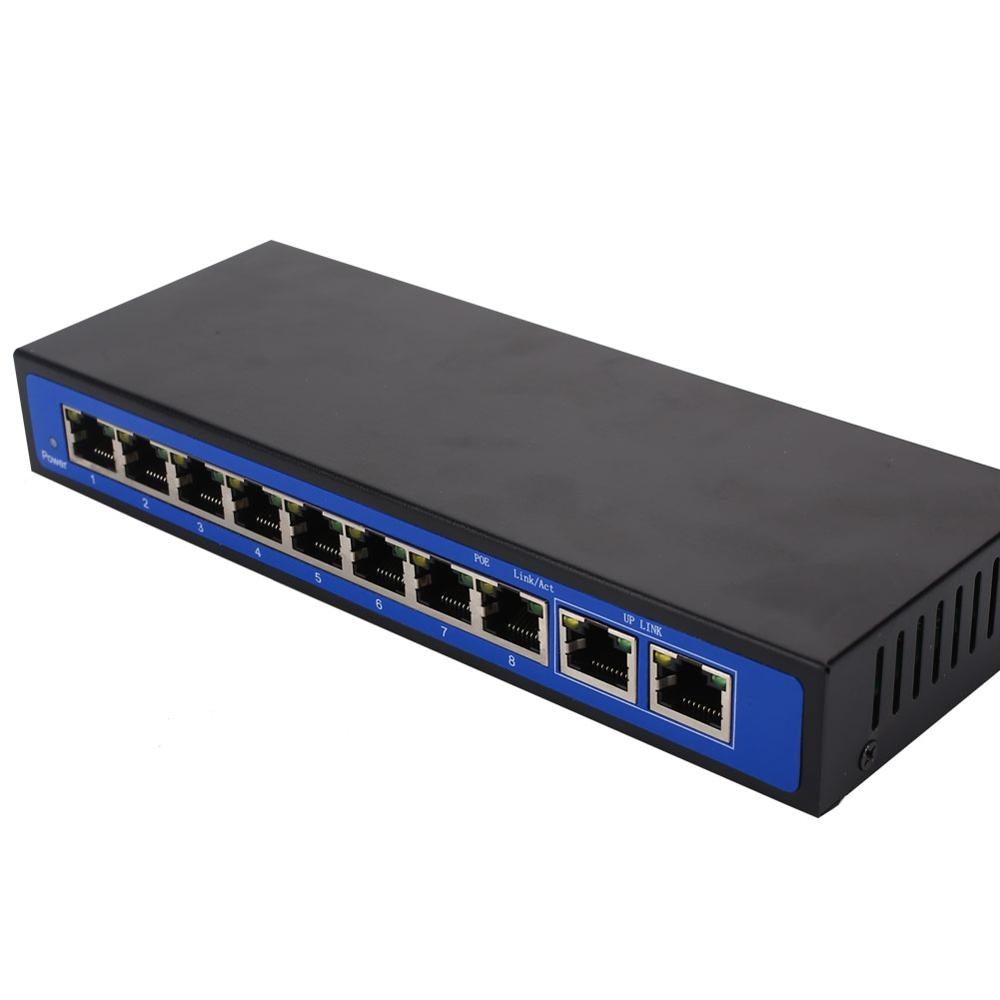

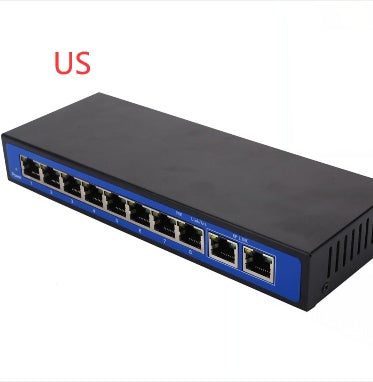

ZWD-8+2BZDW 10 Port 100M POE Switch w/ Wireless AP - 48V Ext. Power - 2.0Gbps Bandwidth - LED Indicators

• Model: ZWD-8+2BZDWPOE Switch Port: Supports IEEE 802.3af (15.4W) network power supply on ports 1-8SEP Port: Not supported

• POE Switch Port Output Power: 15.4W/30W IEEE802.3af/az

• POE Switch Transmission Wire Core: 1/2+, 3/6-pair (optional 4/5+, 7/8-pair)

• Port Description: 8 Ethernet ports; 2 uplink Ethernet ports

• POE Switch Connection Standard: IEEE802.3af/IEEE802.3at

• POE Switch Power Transmission Distance: ≤200 meters

• POE Switch Type: Terminal jumper method

• Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

• Network Medium: Category 5 and above unshielded twisted pair

• Network Signal Distance: Transmission ≤120 meters

• Backplane Bandwidth: 2.0Gbps

• Forwarding Method: Store and forward

• Forwarding Rate: 10Base-T: 14880PPS/port, 100Base-TX: 148800PPS/port

• MAC Address: 2KMAC

• Port Function: Power supply priority mechanism, fast forwarding, MAC automatic learning and aging

• Flow Control: IEEE802.3X full-duplex, Backpressure half-duplex

• Indicator Lights: Each port has 1 Link/Act and POE switch indicator; Each device has 1 Power indicator

• Working Temperature: 0℃ to 40℃

• Storage Temperature: -40℃ to 70℃

• Working Humidity: 10% to 90% RH (no condensation)

• Storage Humidity: 5% to 90% RH (no condensation)

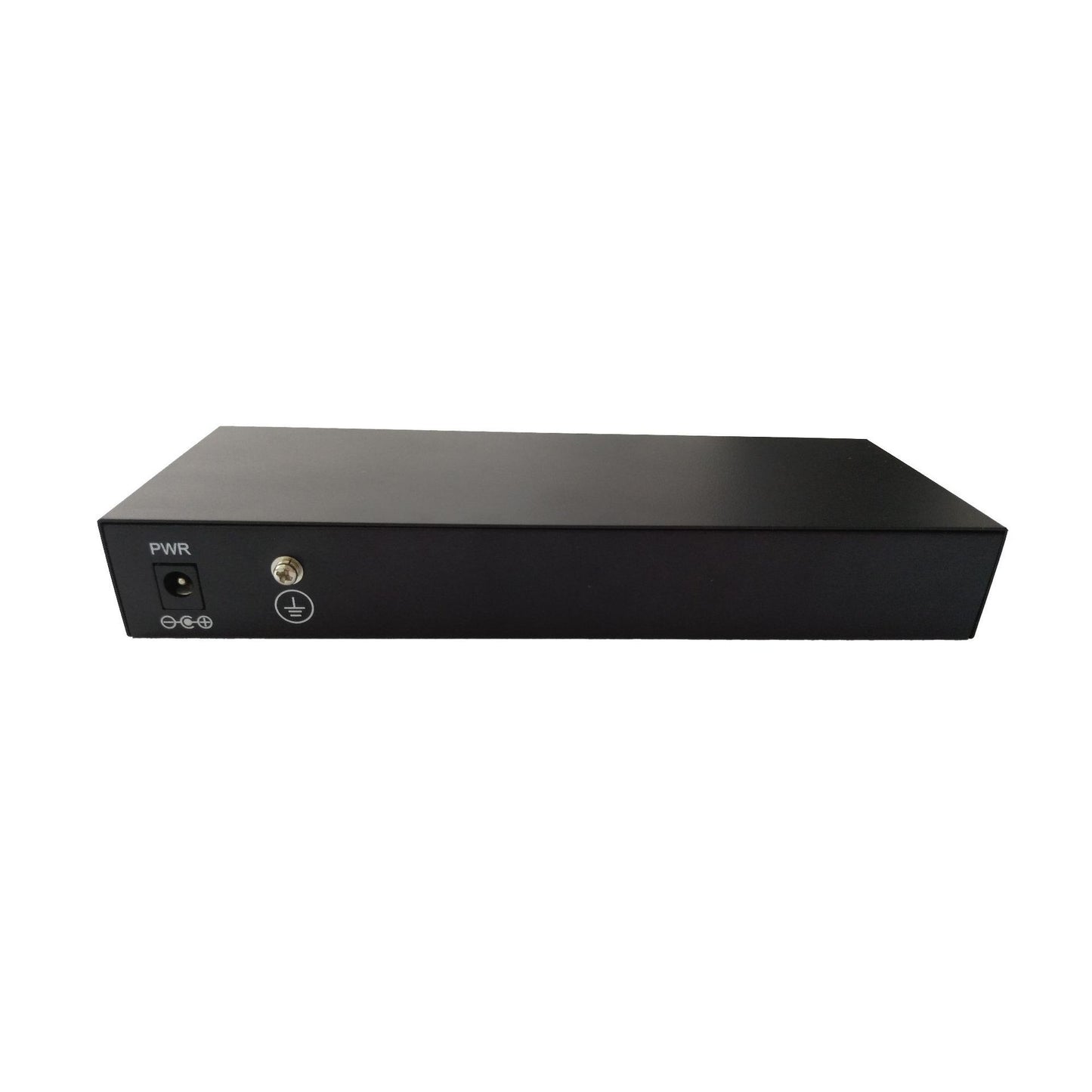

• Power Supply: External power adapter (input AC220V, output 48V 3A)

• Whole Machine Power Consumption: ≤150W

Upgrade your network infrastructure with the efficient and reliable 8+2 Electric POE Power Supply Switch, model ZWD-8+2BZDW.
